## Let it Flow: How to Calculate Viscosity

4
access_time

Viscosity is the measure of a material’s resistance to motion under an applied force. There are several formulas and equations to calculate viscosity, the most common of which is Viscosity = (2 x (ball density – liquid density) x g x a^2) ÷ (9 x v), where g = acceleration due to gravity = 9.8 m/s^2, a = radius of ball bearing, and v = velocity of ball bearing through liquid.

If you want to determine the viscosity of a liquid, try a simple science experiment by measuring the speed of a metal ball dropped in a container of liquid. The velocity of the ball, combined with the relative densities of the ball and the liquid, can be used to calculate the viscosity of liquids. But you can’t calculate viscosity unless you know what it is and why it’s important.

## Definition of Viscosity

The definition of viscosity is “the quantity that describes a fluid’s resistance to flow. Fluids resist the relative motion of immersed objects through them as well as to the motion of layers with differing velocities within them.” Knowing how thick your material is can have huge impact on your ability to get work done. Material such as honey or glue tend to be thicker and are described as having a higher viscosity, whereas water and glycol are less viscous and flow faster.

Temperature also plays a critical role in the viscousness of a liquid. Generally speaking, the warmer a liquid is, the lower its viscosity is and the easier it flows. The colder it is, the more sludge-like it becomes and has a higher viscosity. Understanding how to calculate viscosity can be helpful when deciding if your material is ready to use or not. So how do you determine the viscosity?

Having the right viscosity is crucial for efficient industrial processes. Powerblanket offers a full range of heating solutions to help you achieve your target viscosity quickly and consistently.

## Try This Out

### Calculating the Density of the Ball

1. Measure the mass of your ball using your balance. For instance, suppose the mass of the ball is 0.1 kilograms (kg).
2. Find the radius of the ball by first measuring the diameter (distance of a straight line through the ball at the widest part). Divide the diameter by 2; this gives the radius of your ball.
3. Calculate the volume of the ball by plugging the radius into the equation for the volume of a sphere. Suppose the ball bearing has a radius of 0.01 meter (m). The volume would be:  Volume = 4/3 x pi x (0.01 m) ^3 = 0.00000419 m^3
4. Calculate the density of the ball by dividing its mass by its volume. The density of the ball in the example would be:  Density = 0.1 kg ÷ 0.00000419 m^3 = 23,866 kg/m^3

### Calculating the Density of the Liquid

1. Measure the mass of your graduated cylinder when it is empty. Then, measure the mass of your graduated cylinder with 100 milliliters (mL) of liquid in it. Suppose the empty cylinder had a mass of 0.2 kg, and with fluid, its mass was 0.45 kg.
2. Determine the mass of the fluid by subtracting the mass of the empty cylinder from the mass of the cylinder with the fluid. In the example:  Mass of liquid = 0.45 kg – 0.2 kg = 0.25 kg
3. Determine the density of the fluid by dividing its mass by its volume. Example:  Density of fluid = 0.25 kg ÷ 100 mL = 0.0025 kg/mL = 0.0025 kg/cm^3 = 2,500 kg/m^3*
4. 1 mL is equal to 1 cm^3 *1 million cubic centimeters equal 1 cubic meter

### Calculate Viscosity of Liquid

1. Fill your tall graduated cylinder with the liquid to be tested so it is about 2 cm from the top of the cylinder. Use your marker to make a mark 2 cm below the surface of the liquid. Mark another line 2 cm from the bottom of the cylinder.
2. Measure the distance between the two marks on the graduated cylinder. Suppose that the distance is 0.3 m.
3. Let the ball go on the surface of the liquid, and use your stopwatch to time how long it takes for the ball to fall from the first mark to the second mark. Suppose it took the ball 6 seconds to fall the distance.
4. Calculate the velocity of the falling ball by dividing the distance it fell by the time it took. In the example:  Velocity = 0.3 m ÷ 6 s = 0.05 m/s

Calculate the viscosity of the liquid from the data you have collected:

1. Viscosity = (2 x (ball density – liquid density) x g x a^2) ÷ (9 x v), where g = acceleration due to gravity = 9.8 m/s^2, a = radius of ball bearing, and v = velocity of ball bearing through liquid.
2. Plug your measurements into the equation to calculate the viscosity of the liquid. For the example, the calculation would look like this:  Viscosity = (2 x (23,866 – 2,500) x 9.8 x 0.01^2) ÷ (9 x 0.05) = 93.1 Pascal seconds.

### Viscosity Calculation Formula:

Viscosity = shear stress/shear rate

The result is typically expressed in centipoise (cP), which is the equivalent of 1 mPa s (millipascal second).

## Powerblanket Solutions

Powerblanket makes it easy to lower the viscosity of many industrial fluids by heating the container evenly to the desired temperature, allowing your material to achieve the preferred viscousness for use. This saves you time and money, getting back to work instead of waiting for external temperatures to naturally warm up your material.

Powerblanket offers various ready-to-ship viscosity products, from bucket and drum heaters to IBC tote heaters. We can also produce custom solutions for most applications. If you need better-flowing fluids, Powerblanket has you covered.

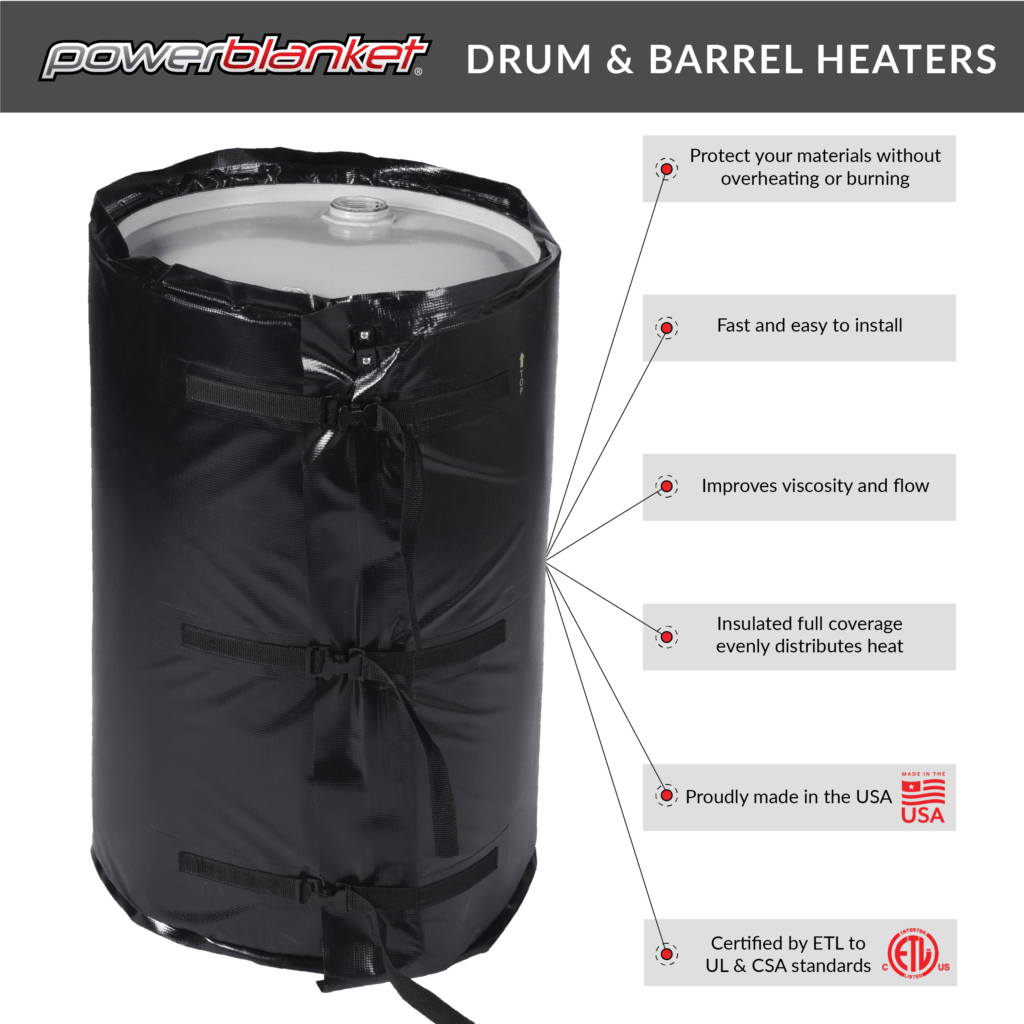

Powerblanket's industrial drum & barrel heaters provide even and consistent heating, eliminating waste and lowering costs.

## How to Lower Viscosity and Flow Control in Colder Temperatures

0
access_time

Reducing viscosity is a challenge during cold winter months. Temperatures that dip below optimum working levels can cause materials that are normally fluid to freeze up into solids or thicken. When this happens, projects are delayed, potentially leading to missing deadlines and loss of profit. What can be done to protect fluid materials from becoming too viscous?

Though viscosity is a complicated and sometimes confusing topic, it only takes a minute to learn a few of the ground rules to viscosity. Through these viscosity basics, you can improve flow control of fluid materials and prevent them from being damaged by cold temperatures.

## VISCOSITY REDUCTION BASICS

A fluid that is viscous will be thick, sticky, and semifluid in consistency. Viscosity can be affected by friction and/or temperature.

### Friction

For example, consider what happens when you need some ketchup on your burger. If you simply invert the bottle and expect the ketchup to flow freely, you are a rookie in the sport of burger-eating. Any professional ketchup shaker knows to shake the bottle and then to proceed with caution, because once you have decreased viscosity, due to the shaking, the ketchup can flow quite rapidly. In other words, keeping the ketchup in motion prevents it from increasing in viscosity.

Mixing concrete is a similar experience. Though not exactly a liquid, wet concrete must be stirred for it to retain its low viscosity. When allowed to stand still or set, concrete’s viscosity increases up to the point of solidifying. Concrete must be continually churned in order to maintain its fluidity.

### Temperature

Temperature is also a factor in decreasing viscosity. Think about honey, certainly a substance that is thick, sticky and semifluid. Simply shaking a jar of honey will not guarantee any flow. Honey cooled in a refrigerator will have little to no flow because it has been cooled, but when warmed appropriately*, there is a viscosity reduction and honey will flow smoothly.

Along with the shear rate, temperature really is the dominating influence. The higher the temperature is, the lower a substance’s viscosity is. The relationship between temperature and viscosity is inversely proportional for all liquids. A change in temperature always affects the viscosity – it depends on the substance just how much it is influenced by a temperature change. For some fluids, even a decrease of 1° C (1.8° F) causes a 10 % increase in viscosity.

## FLUIDS REQUIRING LOWER VISCOSITY

Though not a comprehensive list of all materials that are impacted by cold temperatures, the following items offer a quick look at how many fluids must maintain low viscosity to be effective:

• Acetone
• Automatic Transmission Fluid, Antifreeze, and Brake Fluid
• Aviation Fuels
• Benzene
• Bunker Oil, Marine Fuel Oil
• Chloroform
• Crude Oil
• Diesel Fuel
• Ethanol
• Gear Oil
• Grease
• Heavy Fuel Oil
• Honey
• Hydrofluoric Acid
• Ink
• Mercury
• Methanol
• Mollasses
• Citric Acid
• Paraffin Wax
• Pentane
• Sulfuric Acid
• Tetrahydrofuran
• Toluene

## How to Decrease Viscosity

As mentioned above, viscosity in fluid materials will decrease if one of two measures are taken. Causing friction, such as stirring, mixing or shaking, will keep the material fluid enough to flow correctly. Applying heat to the material will also increase fluidity and protect it from damages that occur when settling.

If it’s supposed to flow but you can’t take it out of its container, ensure low viscosity by using a heating wrap or heated box cover. Evenly distributed heat can be used to warm up material and keep it stable at a specified temperature.

### Powerblanket Viscosity Control Solutions

Powerblanket makes it easy to lower viscosity of fluids. Powerblanket offers various ready-to-ship viscosity products, from bucket and drum heaters to IBC tote heaters. Each Powerblanket product guarantees the following:

• Deliver safe, uniform heat to expensive materials without overheating or burning while lowering viscosity.
• Full wrap-around design provides complete insulation and ensures equal heat distribution.
• Increase the performance and efficiency of your processes—decrease viscosity.
• Safety certified to UL and CSA Standards. Class1 Div2 hazardous location products also available.
• Energy-efficient technology lowers energy-related expenses and overall project and equipment costs.
• Decrease and prevent product waste among temperature sensitive materials by maintaining consistent storage temperatures without significant fluctuations.

Powerblanket also produces custom solutions for most applications. If you need help with viscosity reduction, Powerblanket has you covered.

*Do not heat honey much above 100° F (38° C) to avoid nutritional loss.

Source

“Viscosity Tables and Viscosity Charts.” Viscopedia. 30 December 2016. http://www.viscopedia.com/viscosity-tables/
